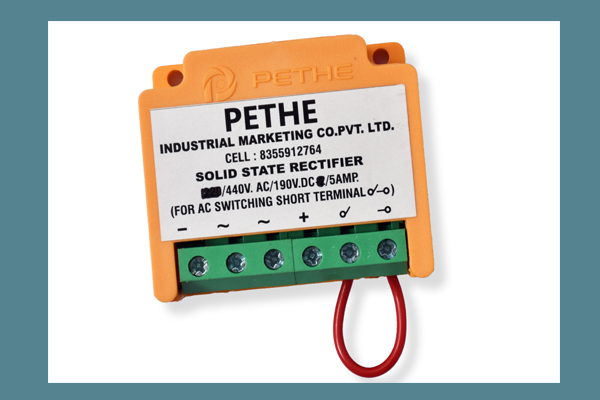

Solid State Rectifier for Industrial Brakes and Clutches

Introduction :

Product Description

A solid state rectifier is an electronic device that converts alternating current (AC) voltage into direct current (DC) voltage. Brake and Clutch coils are operated with DC voltages. Rectifier is a crucial component in the control systems of industrial brakes and clutches, ensuring precise and reliable operation by providing the necessary DC voltage.

Salient features :

High Efficiency operation minimizes energy losses during the conversion process.
Compact design, light weight and easy installation allowing easy integration into existing control panels and terminal box.
Built with high-quality materials, it offers long-term durability and reliability in operation.
DC Side switching is enabled by default for falling load applications such as hoists, lifts and cranes.
Enhanced Performance and responsiveness of brakes and clutches by providing stable and consistent DC voltage.
Superior Design prevents damage to brake / clutch coil from excessive current.

Dimensions and Weight

Weight : 65 Grams
Length : 46mm
Width : 56mm
Height : 28mm

Voltage options

Input Voltage	Output Voltage
415 VAC	190 VDC, 5 Amps
230 VAC	96 VDC, 5 Amps
110 VAC	96 VDC, 5 Amps
230 VAC	230 VDC, 5 Amps
480 VAC	215 VDC, 5 Amps
415 / 460 VAC	190 / 205 VDC, 5 Amps
480 VAC	215 VDC, 5 Amps

other voltages upon request.

Uses and Applications

Rectifiers are used extensively in Electromagnetic Brakes, Clutches, Clutch Brake Combinations, Spring applied Brakes, operating on DC voltage.
Rectifiers are widely used in applications such as Material Handling Equipment namely, Hoists, Lifts, Cranes, Winches and Conveyors.
They are utilized in heavy machinery used in construction, mining, and other industrial sectors to control braking and clutch systems.
Rectifiers are used in Printing, Packaging and Textile machineries.
Any process equipment, SPMs and machine tools using brakes and clutches.
